What Is a Blind Hole Bearing Puller
A blind hole bearing puller is a specialized extraction tool designed to remove bearings, bushings, sleeves, and other press-fit components installed inside blind holes or recessed housings where external access is unavailable. Unlike standard pullers that grip the outside of a component, blind hole pullers expand inside the bearing bore and pull the component outward safely and efficiently.
Why Blind Hole Pullers Are Important
Many bearings are installed deep inside gearbox housings, engine blocks, wheel hubs, and industrial machinery where there is no space for external puller jaws. In these situations, standard pullers cannot reach the component. Blind hole bearing pullers solve this problem by gripping the bearing from the inside and applying controlled extraction force outward.
How a Blind Hole Bearing Puller Works
The puller collet or expanding jaw is inserted into the bearing’s inner diameter. Once positioned correctly, the collet expands and locks against the inner race of the bearing. A slide hammer, forcing screw, or hydraulic pulling system is then connected to generate extraction force and remove the bearing from the blind hole.
Step-by-Step Operating Process
First, the technician selects the correct collet size according to the bearing diameter. Second, the collet is inserted into the bearing bore and expanded securely. Third, a slide hammer or puller mechanism is attached. Finally, pulling force is applied gradually until the bearing is extracted from the housing.
Main Components of a Blind Hole Bearing Puller

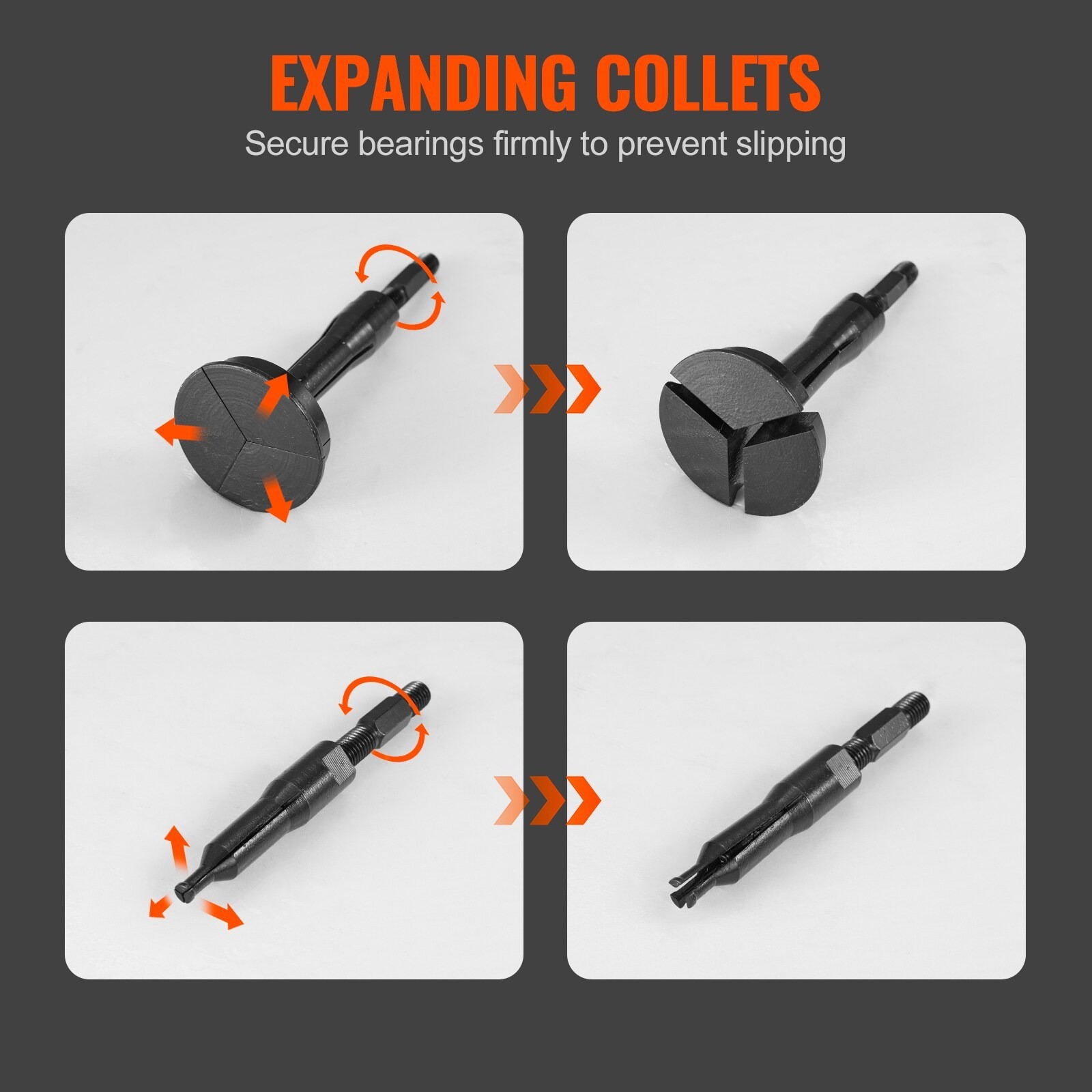

Expanding Collets
Expanding collets are the key gripping components of the tool. They expand outward inside the bearing bore to create secure contact with the inner race.
Slide Hammer
Many blind hole pullers use a slide hammer to generate impact pulling force. The repeated sliding motion helps remove seized or tightly fitted bearings efficiently.
Forcing Screw or Hydraulic System
Some advanced blind hole pullers use threaded forcing screws or hydraulic cylinders to apply smoother and more controlled extraction force, especially in heavy-duty applications.
Adapters and Extensions
Interchangeable adapters allow the puller to service different bearing sizes and depths, improving versatility across multiple repair tasks.
Common Applications of Blind Hole Bearing Pullers
Blind hole bearing pullers are widely used in automotive transmission repair, wheel hub maintenance, engine rebuilding, electric motor servicing, and industrial machinery maintenance. They are especially effective for removing pilot bearings, gearbox bearings, crankshaft bearings, and recessed bushings.
Advantages of Using a Blind Hole Bearing Puller
Access to Recessed Bearings
Blind hole pullers can remove bearings installed deep inside housings where external pullers cannot operate.

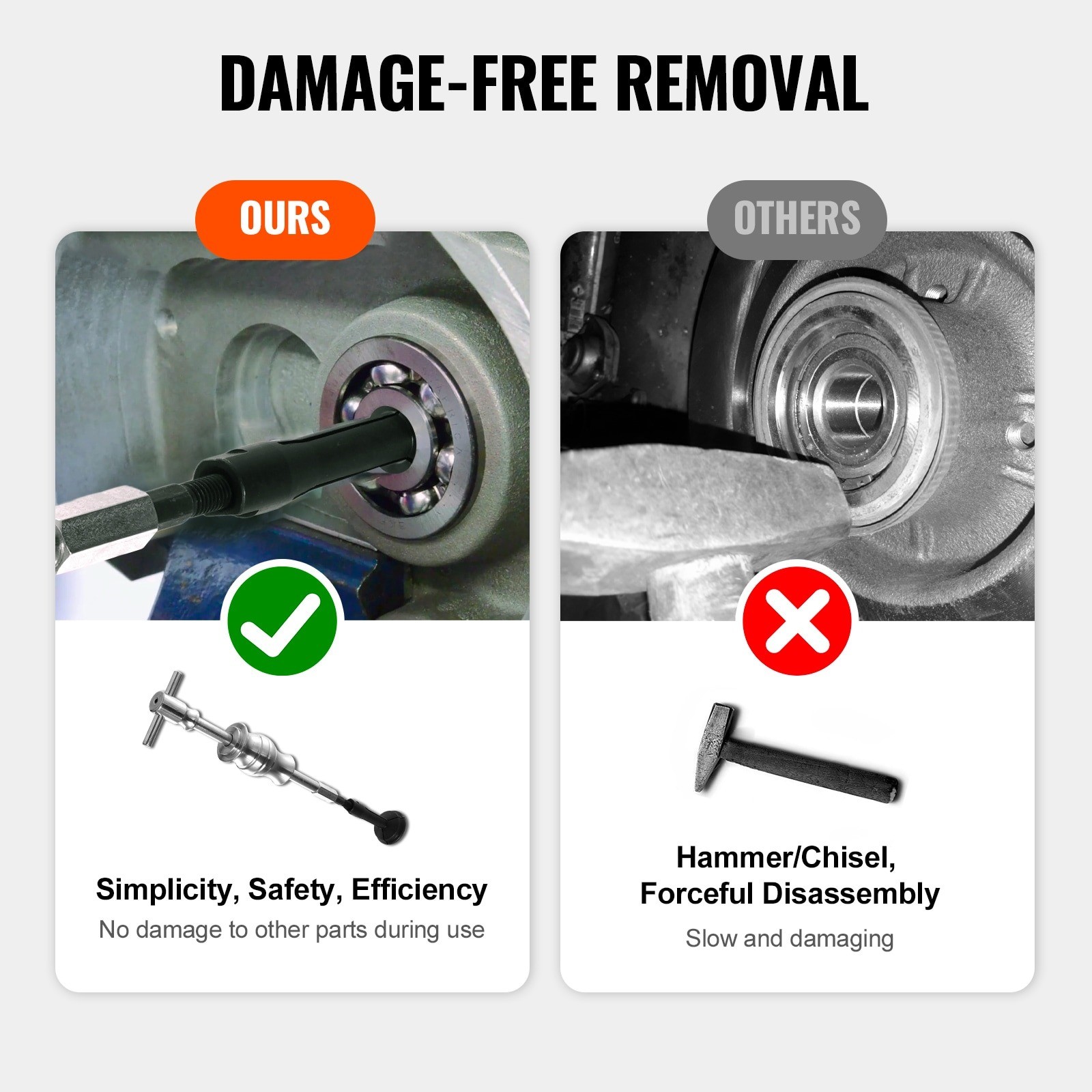

Reduced Risk of Housing Damage
Controlled extraction force minimizes damage to housings, shafts, and surrounding components during removal.
Improved Workshop Efficiency
Using the correct blind hole puller reduces repair time and simplifies difficult extraction operations in professional workshops.
Wide Compatibility
Interchangeable collets and adapters allow one tool kit to service multiple bearing sizes and applications.
Blind Hole Puller vs Standard Bearing Puller
| Feature | Blind Hole Puller | Standard Puller |
|---|---|---|
| Grip Location | Inside bearing bore | Outside component surface |
| Best Application | Blind holes and recessed bearings | Exposed bearings and gears |
| Space Requirement | Minimal external clearance required | Requires outside gripping space |
| Common Industries | Transmission, engine, industrial repair | General automotive and machinery repair |
Summary
A blind hole bearing puller is a specialized internal extraction tool used to remove bearings and bushings installed inside recessed or blind housings. By gripping the component from the inside and applying controlled pulling force, blind hole pullers improve repair efficiency, reduce component damage, and support professional automotive and industrial maintenance operations.
