How Bearing Separators Work
A bearing separator, sometimes called a bearing splitter, is a specialized tool used to remove bearings, gears, pulleys, and other press-fit components when there is little or no clearance available for standard puller jaws. By using two hardened steel halves with tapered edges, a bearing separator creates a secure gripping surface behind the component, allowing safe and controlled extraction.
Why Bearing Separators Are Used
Many bearings are installed tightly against shafts, shoulders, housings, or gears, leaving no space for conventional puller jaws to grip. A bearing separator solves this problem by sliding behind the bearing and providing a secure pulling surface for mechanical pullers, hydraulic pullers, or shop presses.

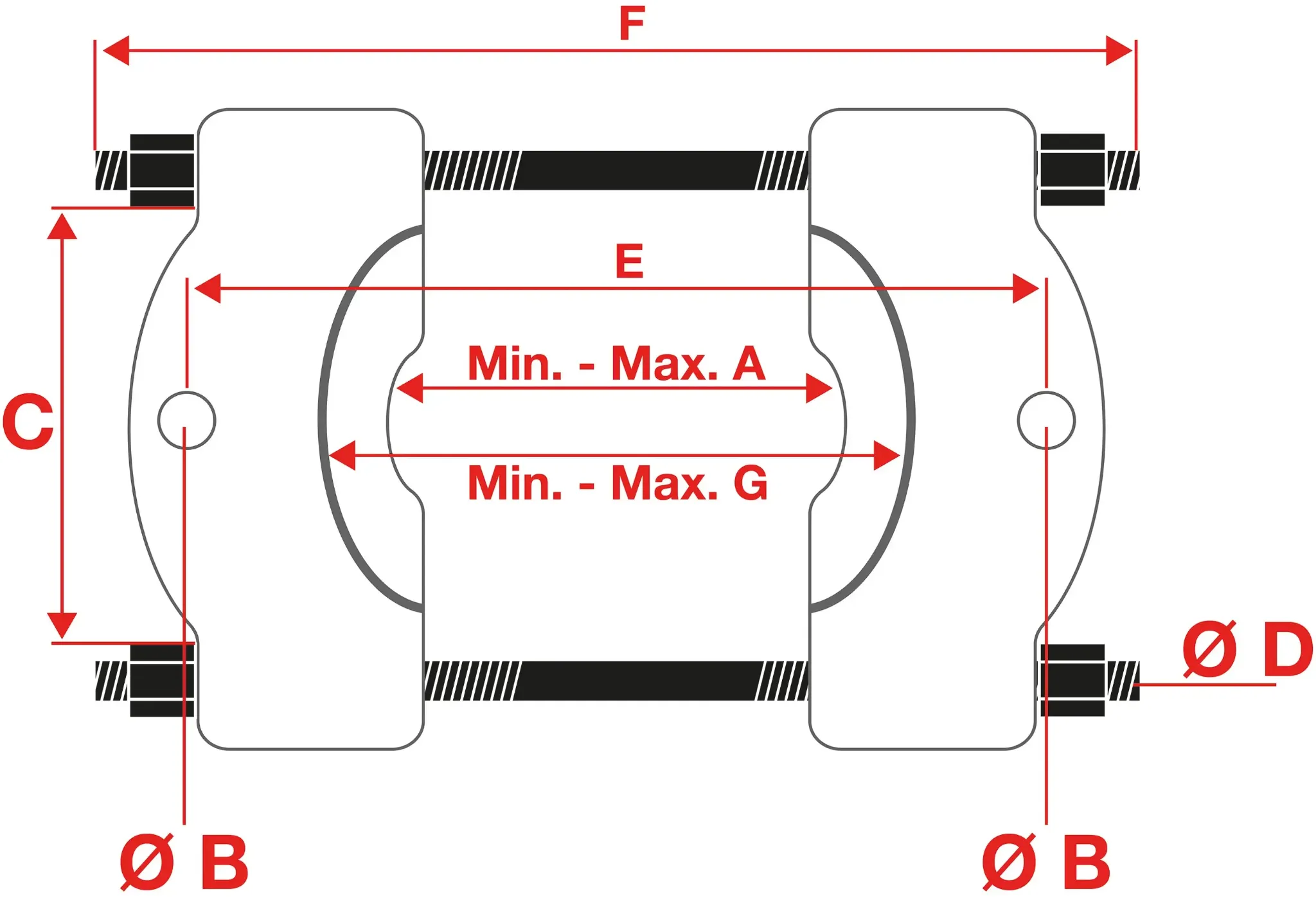

Main Components of a Bearing Separator
Separator Halves
The separator consists of two precision-machined steel halves. Each half features a tapered knife edge designed to slide into narrow gaps behind bearings and other components.
Clamping Bolts
High-strength bolts join the separator halves together and allow the tool to clamp tightly behind the bearing during extraction.
Puller Bars
Puller bars connect the separator to a puller assembly or hydraulic system, transferring extraction force from the puller to the bearing.
Forcing Screw or Hydraulic Ram
The actual pulling force is generated by a forcing screw or hydraulic cylinder attached to the separator assembly. This force removes the bearing from the shaft in a controlled manner.

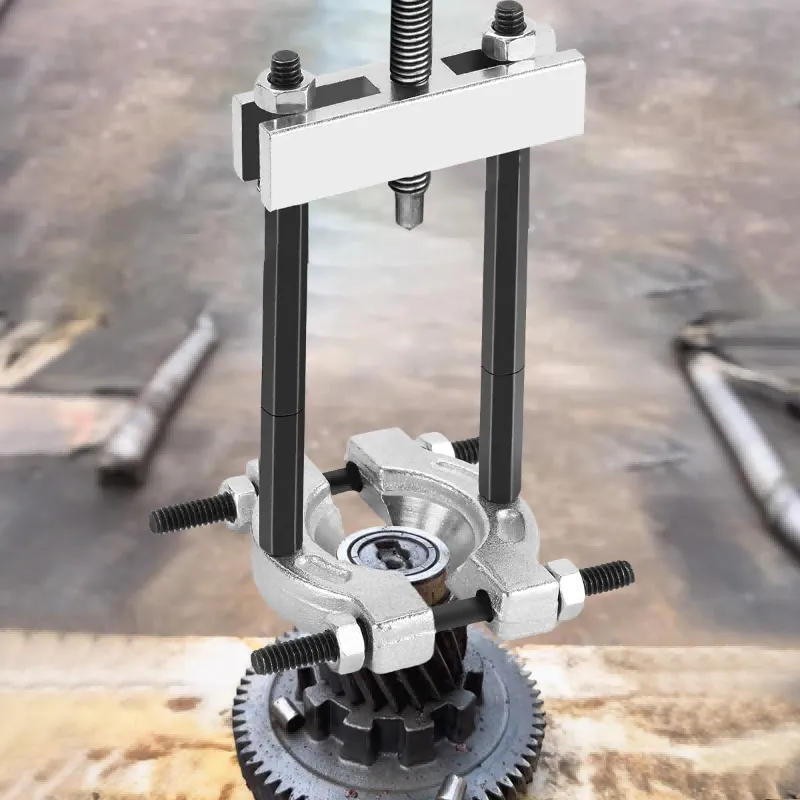

Complete Extraction System
A bearing separator is not usually used alone. It works together with a puller or press system, creating a complete extraction solution for components that cannot be reached by standard pullers.
Step-by-Step Working Process
Step 1: Position the Separator
The two separator halves are placed around the shaft and positioned behind the bearing. The tapered edges are carefully inserted into the narrow clearance available behind the component.
Step 2: Tighten the Clamping Bolts
The bolts are tightened evenly, forcing the separator halves together. As they tighten, the knife edges move deeper behind the bearing and establish a secure grip.
Step 3: Attach the Puller Assembly
Puller bars and a cross beam are connected to the separator. The assembly is then linked to either a forcing screw puller or a hydraulic puller.
Step 4: Apply Extraction Force
The puller generates axial force while the separator remains locked behind the bearing. The bearing gradually moves away from the shaft as pulling force increases.
Step 5: Remove the Component
Once sufficient force is applied, the bearing separates from the shaft and can be removed safely without damaging surrounding components.
Why Bearing Separators Are Effective
The effectiveness of a bearing separator comes from its thin tapered edges. These edges can access extremely tight spaces that conventional puller jaws cannot reach, making bearing separators one of the most valuable tools for difficult extraction jobs.
| Feature | Benefit |
|---|---|
| Tapered Knife Edges | Access very limited clearances |
| Split Design | Fits around shafts easily |
| Secure Clamping | Provides stable extraction support |
| Puller Compatibility | Works with mechanical and hydraulic pullers |
Common Applications
Bearing separators are commonly used for wheel bearings, gearbox bearings, transmission shafts, electric motors, industrial machinery, agricultural equipment, heavy truck drivetrains, and gear assemblies where rear access is limited.
Bearing Separator vs Standard Puller
| Feature | Bearing Separator | Standard Puller |
|---|---|---|
| Limited Clearance Access | Excellent | Limited |
| Gripping Method | Knife-edge separator halves | Puller jaws |
| Best Application | Bearings with no rear clearance | General extraction tasks |
| Force Source | Requires puller or press | Integrated extraction mechanism |
Advantages of Using a Bearing Separator
- Accesses extremely tight spaces behind bearings
- Reduces the risk of shaft and housing damage
- Improves extraction safety and stability
- Compatible with mechanical and hydraulic pullers
- Suitable for automotive, industrial, and heavy-duty applications
Summary
A bearing separator works by inserting two tapered steel halves behind a bearing and creating a secure extraction point where standard puller jaws cannot reach. When combined with a puller or hydraulic system, it provides a safe, controlled, and highly effective method for removing tightly mounted bearings, gears, pulleys, and other press-fit components in professional maintenance environments.
