Special tool set for zf 12s 16s Transmission
- Model
- XH-F10161 truck transmission repair tool cabinet for zf gearbox center
Item specifics
- Place of Origin
- Zhejiang, China
- Type
- ZF transmission Tools
- Warranty
- 18months
- Fitting
- zf 16s transmission&zf 12 traxon gearbox repair
- Brand
- Oxvito
- OEM&ODM
- Acceptable
- Application
- ZF Transmission Gearbox Mechanic
- suitable
- zf service center,zf transmission workshop

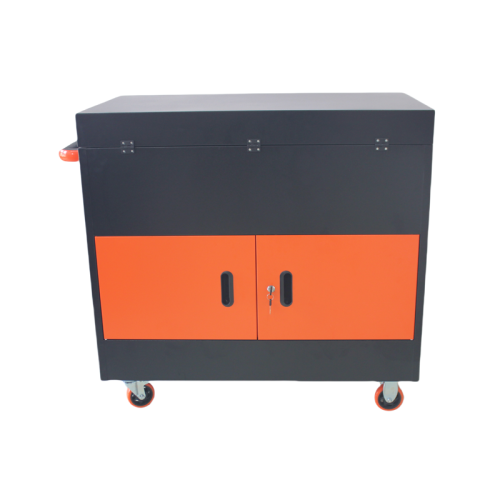

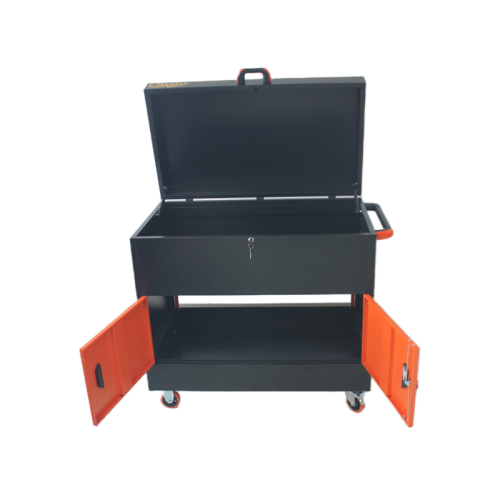

- Door
- double way door
Review
Description

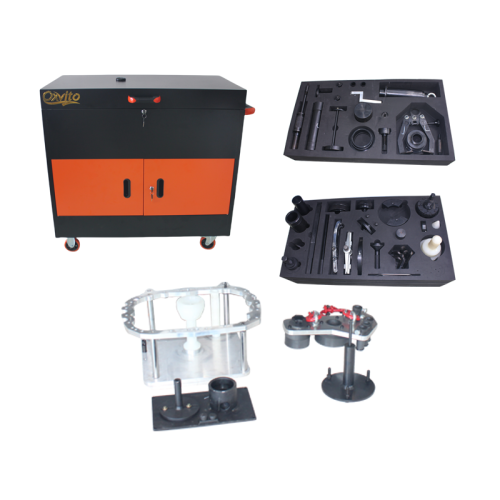

ZF Ecosplit 16s &TraXon 12 Transmission Repair Tool Kit for Heavy Truck| Heavy Truck Transmission Tools (43PCS)

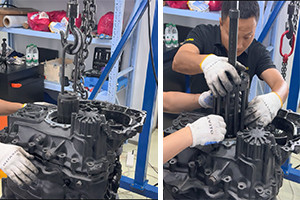

This professional ZF transmission repair tool kit is designed for ZF Ecosplit 16S and ZF TraXon 12 gearboxes, enabling efficient disassembly, installation, and maintenance. One complete set covers multiple transmission models, helping workshops reduce damage risk, improve repair efficiency, and standardize service operations.
Tools kit fitting to
Sinotruck SITRAK C7H,SITRAK C9H,FAW JIEFANG J7,FAW JIEFANG J6V,Foton AUMAN GTL,Foton AUMAN EST-A,Foton A,Foton R,Foton Galaxy,JAC Gallop A5IIIW,K7 JAC,JAC ChaoYue Q7,Mercedes-Benz Actros,Dongfeng KX,JAC V7,JAC Gallop K5W etc;
ZF: ZF TraXon AMT/ZF Ecosplit 16S,ZF16S2530,12TX2621TD AMT,ZF16S221,ZF16S2230,etc
Truck Type: TRACTOR,Dump Truck , Cargo Truck,etc
OEM & Customization Available
▷OEM & private label support for tool brands and distributors
▷Custom tool configuration based on specific repair applications
▷Bulk supply capability for importers and wholesalers
▷Strong reverse engineering capability for new tool development
▷Advanced reverse engineering capability to develop custom tools from samples, drawings, or real repair scenarios
Common Challenges in ZF Transmission Repair
▷Bearing removal without dedicated tools can cause component damage and rework
▷Incorrect installation may lead to gearbox failure and costly downtime
▷Low efficiency increases labor time and reduces workshop productivity
Our Solution for Efficient ZF Transmission Repair
▷Dedicated pullers for precise and safe bearing removal
▷Professional installation tools to prevent component damage
▷Modular tool system designed to improve workflow efficiency
▷One complete tool kit covering multiple ZF transmission models
What's Included in This Tool Kit
Bearing Pullers
Used for safe and precise removal of bearings from shafts and housings
Shaft installation tools
Ensure correct positioning and prevent damage during assembly.
Gearbox support fixtures
Provide stable support during disassembly and installation.
Alignment and positioning tools
Maintain correct alignment of transmission components
Compatible Models

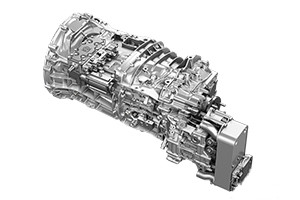

ZF Ecosplit 16S Series

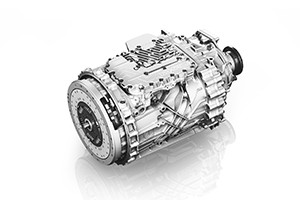

ZF TraXon 12TX Series
Used for gearbox overhaul and maintenance
Application

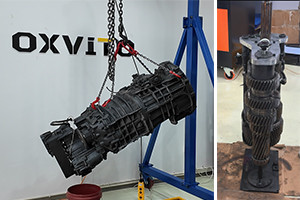

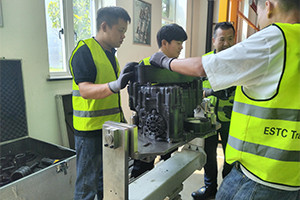

Transmission Rebuild Service Providers
Designed for gearbox overhaul, bearing replacement, and complete transmission rebuilding.

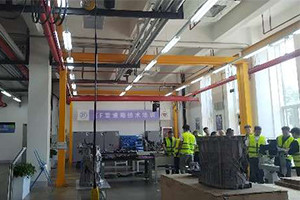

ZF Gearbox Service Stations
Professional solution for ZF Ecosplit and TraXon transmission service operations.

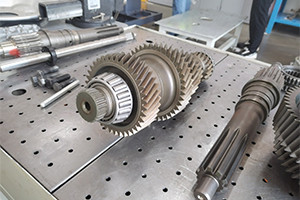

Heavy Truck Repair Workshops
Ideal for daily transmission repair, disassembly, and maintenance of ZF gearboxes
Fleet Maintenance Centers
Suitable for preventive maintenance and fast repair of commercial vehicle transmissions.
Include Zf Number or Replacement Number
Our Tool No. | ZF OE No. | Description | Application |
| XH-F10155 | ZF 1×56.138.733,ZF 1×56.138.734 | Oil pipe oil seal ring protection Centering Pin for placing the clutch housing on the bearing support | ZF Traxon |
| XH-F10002 | ZF 1×56.138.729 | Gearbox Support Block/Assembly Fixture for disassembling&assembling the bearing support | ZF Traxon |
XH-F10009-2 | ZF 1×56.138.295 | Hydraulic Bearing Puller for removing output shaft bearing (11 Balls) | ZF Ecosplit&ZF Traxon |
XH-F10024 | ZF 1×56.137.124,ZF 1×56.138.064 | Protective Sleeve&oil seal installer for pressing in cylindrical roller bearing at the bearing support&placing protective sleeve on input shaft | ZF Ecosplit&ZF Traxon |
XH-F10100 | ZF 1×56.136.722 | First Shaft bearing extractor for removing input shaft Roller bearing | ZF Ecosplit |
XH-F10116 | ZF 1×56.136.260 | Auxiliary sling for removing&fitting the transmission housing | ZF Ecosplit&ZF Traxon |
XH-F10101 | ZF 1×56.122.304 | Bearing Extractor Holder,Assembly aid,for removing clutch housing&disassembling the countershaft | ZF Ecosplit&ZF Traxon |
XH-F10157 | ZF 1×56.138.196 | Main shaft fixed Support Aid for Assembly Main shafts -12 Speed&16Speed | ZF Ecosplit&ZF Traxon |
XH-F10110 | ZF 1×56.137.675,ZF 1×56.137.953,ZF 1×56.137.920 | Main&counter shaft fixed seat Support for shafts and selector rails | ZF Ecosplit |
............. |
Package

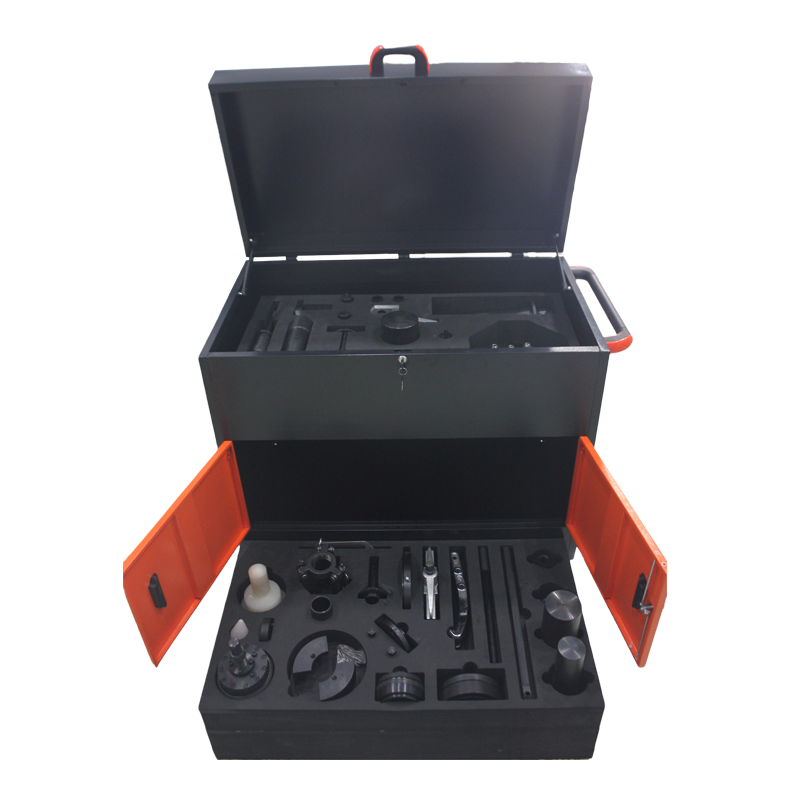

All tools are packed in durable cases for safe transportation
