What Is a 3 Jaw Puller
A 3 jaw puller is a specialized extraction tool designed to remove bearings, gears, pulleys, hubs, and other press-fit components from shafts safely and efficiently. The tool uses three evenly spaced jaws together with a center forcing screw or hydraulic ram to apply balanced pulling force. Compared with 2 jaw pullers, 3 jaw pullers provide greater stability, improved grip, and more even force distribution during extraction operations.
Why 3 Jaw Pullers Are Widely Used
Many automotive and industrial components require balanced extraction force to prevent slipping or uneven pressure during removal. The three-jaw structure distributes force more evenly around the component, reducing the risk of damage and improving pulling stability. This makes 3 jaw pullers highly suitable for heavy-duty repairs and precision extraction tasks.
How a 3 Jaw Puller Works

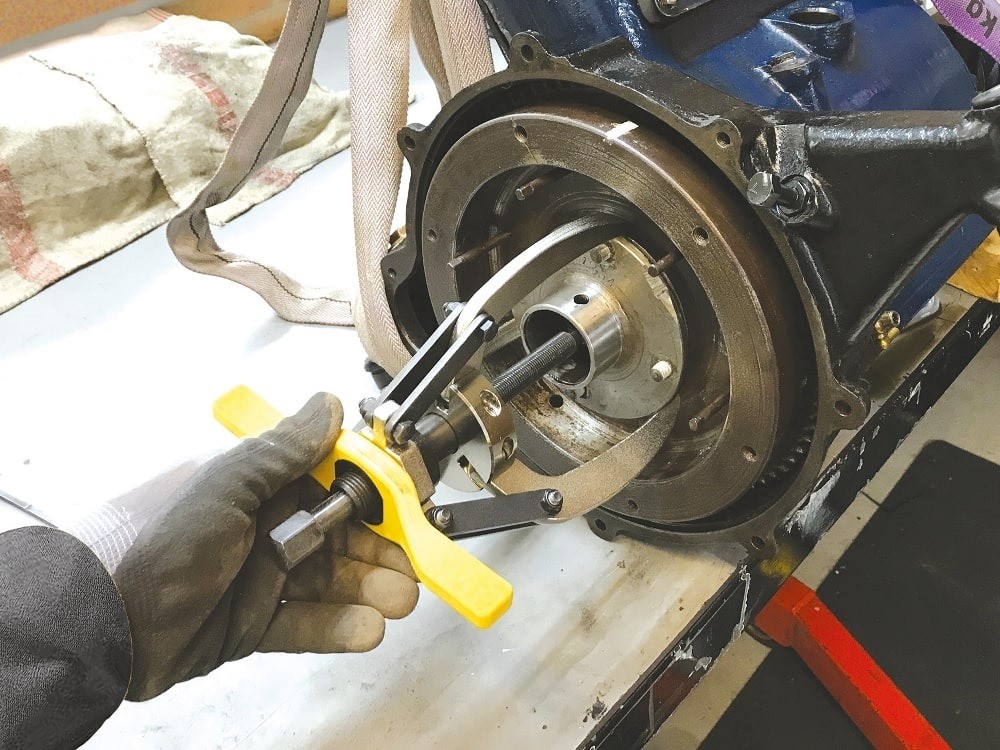

A 3 jaw puller works by gripping the component evenly with three adjustable jaws while the center forcing screw presses against the shaft center. As the forcing screw is tightened, the jaws apply outward extraction force, gradually removing the gear, bearing, or pulley from the shaft. Hydraulic versions use hydraulic pressure to increase extraction capacity and reduce operator effort.
Step-by-Step Operating Process
First, the jaws are adjusted according to the component size. Second, the puller is positioned behind the bearing or gear with equal jaw spacing. Third, the forcing screw or hydraulic ram is aligned with the shaft center. Finally, force is applied gradually until the component is extracted safely and evenly.
Main Components of a 3 Jaw Puller
Three Puller Jaws
The three jaws grip the component evenly and provide balanced pulling force during extraction. Adjustable jaw positioning allows the tool to fit different component sizes.
Center Forcing Screw
The forcing screw generates extraction force by pushing against the shaft center while the jaws pull the component outward.
Cross Head or Yoke
The cross head connects the jaws and helps distribute force evenly across the puller assembly.
Hydraulic Cylinder (Hydraulic Models)
Hydraulic 3 jaw pullers include a hydraulic ram that provides higher pulling force for heavy-duty automotive and industrial applications.
Types of 3 Jaw Pullers
Mechanical 3 Jaw Pullers
Mechanical pullers use manual screw force and are commonly used in automotive repair workshops and industrial maintenance operations.
Hydraulic 3 Jaw Pullers
Hydraulic pullers use hydraulic pressure to remove large or seized bearings and gears in heavy-duty environments.
Reversible 3 Jaw Pullers
Reversible designs allow the jaws to be configured for both internal and external pulling applications.
Common Applications of 3 Jaw Pullers
3 jaw pullers are widely used for wheel bearing removal, gearbox repair, pulley extraction, electric motor maintenance, axle service, and industrial machinery repair. Their balanced gripping structure makes them especially effective for removing larger or tightly fitted components.
Advantages of a 3 Jaw Puller
Better Force Distribution
The three-jaw structure distributes extraction force evenly around the component, improving stability during operation.
Improved Grip Stability
Compared with two-jaw pullers, three-jaw pullers reduce the risk of slipping when removing stubborn bearings or gears.
Higher Pulling Capacity
The balanced design allows 3 jaw pullers to handle larger components and higher extraction loads.
Reduced Risk of Component Damage
Even pulling force minimizes stress concentration and helps protect shafts, gears, and housings during extraction.
3 Jaw Puller vs 2 Jaw Puller
| Feature | 3 Jaw Puller | 2 Jaw Puller |
|---|---|---|
| Force Distribution | Balanced three-point contact | Two-point contact |
| Grip Stability | Higher | Medium |
| Space Requirement | Larger working area required | Suitable for tighter spaces |
| Typical Applications | Large gears and bearings | Compact assemblies |
Summary
A 3 jaw puller is a stable and efficient extraction tool designed for removing bearings, gears, pulleys, and other press-fit components. Its balanced three-point gripping structure provides improved stability, higher pulling capacity, and reduced component damage, making it an essential tool for automotive, heavy-duty truck, and industrial maintenance applications.
